X-RAY FLUORESCENCE INSTRUMENTS

Are you responsible for elemental (chemical) analysis and/or quality control in your organisation?

If so, you will be well aware of the financial rewards to your organisation of using an appropriate and cost-effective solution for measuring what you need to control.

For this reason, we are providing you with the information on the latest in the Jordan Valley range of X-ray fluorescence (XRF) elemental analysers which are supplied and supported here in the UK by Staplethorne.

Jordan Valley manufactures an innovative range of high quality energy-dispersive X-ray fluorescence (EDXRF) spectrometers that are setting new standards in performance, reliability and cost-effectiveness. These are used for the non-destructive analysis of the multi-elemental composition of a wide range of materials - rapidly providing essential information to laboratories, process control managers, etc. With increasing demands on quality, and the rising costs of materials and labour, these simple to operate Windows © - based XRF instruments, with their minimal sample preparation requirements, provide reliable answers with a minimum of fuss and maintenance.

These XRF products offer the following benefits:

• Rapid determination of elements from sodium to uranium, with options to analyse down to oxygen
• Accurate and precise/reproducible results
• Totally non-destructive technique - sample available for subsequent tests, valuable objects remain intact (very large items can be analysed)
• No sample contact - can be in solid or liquid form
• Qualitative, semi-quantitative, and quantitative analysis
• Sensitivity from ppm to major elements
• Flexible and easy-to-use, even by non-technical personnel.
• Robust and well proven technology, with portable and LN2 - free options
• Local expertise and technical support available
• New performance-to-price ratio not previously available
• Low cost of labour (non-technical staff can operate)
• Very low cost of consumables for most applications

	Presenting a full range of high quality XRF elemental analysis systems to suit a wide variety of applications and budgets

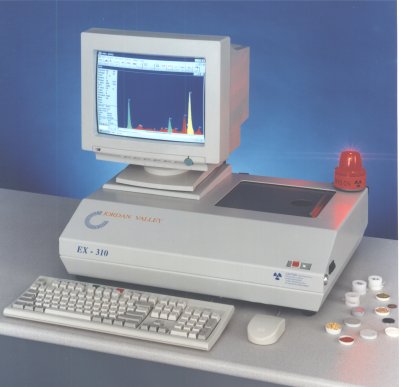

	Desktop Elemental XRF Analyser: EX-310 low cost, high performance desktop EDXRF spectrometer analyse Mg-U with or without standards high resolution (<250eV) Si-semiconductor X-ray detector thermoelectrically cooled, no LN2 needed solenoid controlled air, He-purge, or vacuum conditions high precision multi-sample changer eight computer-selectable filters for high sensitivity easy-to-use powerful Windows software low cost of labour (non-technical staff can operate) very low cost of consumables for most applications
	Industrial XRF Spectrometer: EX-3600 moderately priced direct XRF excitation configuration analyse Na-U with or without standards sensitivity from ppm to major elements 150eV resolution Si(Li) detector 50kV front-anode end-window X-ray tube eight computer-selectable filters for high sensitivity large sample chamber sample spinner and automatic changer easy-to-use powerful Windows software upgradeable to EX-6600 robust and well proven technology

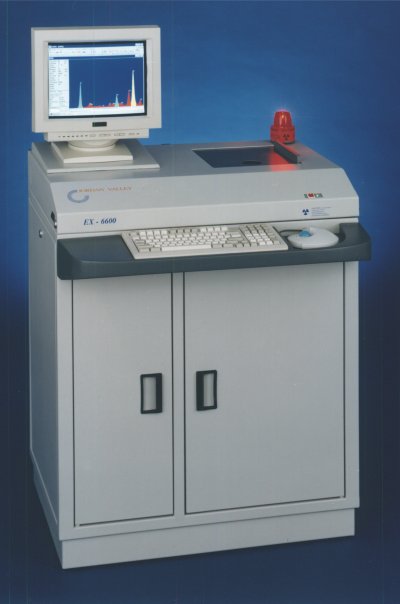

	Advanced XRF Spectrometer: EX-6600 patented optics with secondary targets, for direct or secondary excitation (STE) analyse Na-U with or without standards front-anode, end-window X-ray tube for stability and durability 8 filters/secondary targets for ultimate flexibility highest sensitivity and selectivity sample spinner and automatic changer easy-to-use powerful Windows software
	Options:

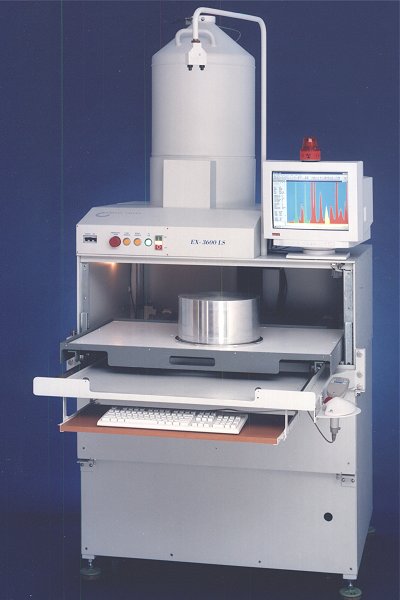

The EX-3600LS large sample analyser	Large Sample Capability available on EX-3600 & EX-6600 samples up to 25cmH × 97cmW × 66cmL in size sample weight capacity up to 30kg Light Element Option available on EX-3600 & EX-6600 analysis of elements down to oxygen Standard Sample Holders autosamplers of various capacities liquid sample capability Liquid Nitrogen-free Detectors available on all models



Jordan Valley is a long established Israeli company, with a major subsidiary in Texas and expert technical representatives throughout Europe and many other trading areas. Staplethorne, their UK representative, is a company that carries out technical research, product development, and marketing of instrumentation for non-contacting/non-intrusive elemental analysis. We are also capable of creating specific application procedures and adapting products to meet specific customer needs, and offer UK-based service and support.

Frequently asked questions (FAQs) about EDXRF
