Price-performance breakthrough in elemental analysis

June 2016: Staplethorne Ltd (in Devon) is selling a range of used R&D X-ray and vacuum equipment. This includes: a 320KV radiation chamber (set up for R&D with 320KV X-ray tube and Ge detectors), Ge & Si(Li) detectors, vacuum pumps, and NIM crate and modules. Please contact xrays@staplethorne.co.uk or Tel: + 44 (0)1404 42455 for further information if of interest.
Used R&D X-ray and Vacuum Equipment List.
- Opens in new window - Please allow a few moments


Are you responsible for elemental (chemical) analysis and/or quality control in your organization?

If so, you will be well aware of the financial rewards to your organization of using an appropriate and cost-effective solution for measuring what you need to control.

For this reason, we would like to introduce to you the latest in the Xenemetrix (formerly Jordan Valley) range of X-ray fluorescence (XRF) elemental analyzers which are supplied and supported here in the UK by Staplethorne Ltd, who are experts in XRF analysis and X-ray system design for a range of customers.

Xenemetrix manufactures an innovative range of high quality energy-dispersive X-ray fluorescence (EDXRF) spectrometers that are setting new standards in performance, reliability and cost-effectiveness. These are used for the non-destructive analysis of the multi-elemental composition of a wide range of materials - rapidly providing essential information to laboratories, process control managers, etc. With increasing demands on quality, and the rising costs of materials and labour, these simple to operate Windows - based XRF instruments, with their minimal sample preparation requirements, provide reliable answers with a minimum of fuss and maintenance.

These XRF products offer the following benefits:

  • Rapid determination of elements from sodium to uranium, with options to analyse down to oxygen
  • Accurate and precise/reproducible results
  • Totally non-destructive technique - sample available for subsequent tests, valuable objects remain intact
  • No sample contact - can be in solid or liquid form
  • Qualitative, semi-quantitative, and quantitative analysis
  • Sensitivity from ppm to major elements
  • Flexible and easy-to-use, even by non-technical personnel.
  • Robust and well proven technology, with portable and liquid nitrogen-free options
  • Local expertise and technical support available here in the UK
  • New performance-to-price ratio not previously available
  • Low cost of labour (non-technical staff can operate)
  • Very low cost of consumables for most applications

C:\Documents and Settings\moran.a\My Documents\Moran Projects\Xenematrix\Logo\XENE.JPG

Presenting a full range of high quality XRF elemental analysis systems to suit a wide variety of applications and budgets

P:\Marketing XM\Leonardo\Marketing\Instrument Images\smobile.gif




P:\Marketing XM\Leonardo\Marketing\Instrument Images\X-Calibur.gif





Desktop Elemental XRF Analyzer: EX-2600 series

S-Mobile Analyzer and X-Calibur EDXRF Spectrometers

  • low cost, high performance desktop EDXRF spectrometer
  • analyze Mg-U with or without standards
  • high resolution (<250eV) Si-semiconductor X-ray detector
  • thermoelectrically cooled, no LN2 needed
  • solenoid controlled air, He-purge, or vacuum conditions
  • high precision multi-sample changer
  • eight computer-selectable filters for high sensitivity
  • easy-to-use powerful Windows software
  • low cost of labour (non-technical staff can operate)
  • very low cost of consumables for most application



P:\Marketing XM\Leonardo\Marketing\Instrument Images\EX3600--300-DPI-Touchup.gif

Industrial XRF Spectrometer: EX-3600 series

  • moderately priced direct XRF excitation configuration
  • analyze Na-U with or without standards
  • sensitivity from ppm to major elements
  • 150eV resolution Si(Li) detector
  • 50kV front-anode end-window X-ray tube
  • eight computer-selectable filters for high sensitivity
  • large sample chamber
  • sample spinner and automatic changer
  • easy-to-use powerful Windows software
  • upgradeable to EX-6600
  • robust and well proven technology

P:\Marketing XM\Leonardo\Marketing\Instrument Images\EX-6600_Spectra 300 DPI Touchup copy.jpg

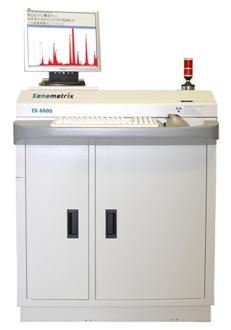

Advanced XRF Spectrometer: EX-6600 series

  • patented optics with secondary targets, for direct or secondary excitation (STE)
  • analyze Na-U with or without standards
  • front-anode, end-window X-ray tube for stability and durability
  • 8 filters/secondary targets for ultimate flexibility
  • highest sensitivity and selectivity
  • sample spinner and automatic changer
  • easy-to-use powerful Windows software


  • OPTION: EX-6600 AF Air Filter analyzer - ideal for use in air quality monitoring






Xenemetrix is an established Israeli company, with a major subsidiary in Texas and expert technical representatives throughout Europe and many other trading areas.

Staplethorne , their UK representative, is a company that carries out contract technical research, product development, and marketing of instrumentation for non-contacting/non-intrusive elemental analysis as well as designing a range of other sensors and instrumentation. We are also capable of creating specific application procedures and adapting products to meet specific customer needs, and offer UK-based service and support. We can also carry out XRF design and/or analysis projects for you and we are interested in receiving project proposals.
